K2 P-Rack System for 16 panels - HIGH wind load 1.3kN/m⊃2;

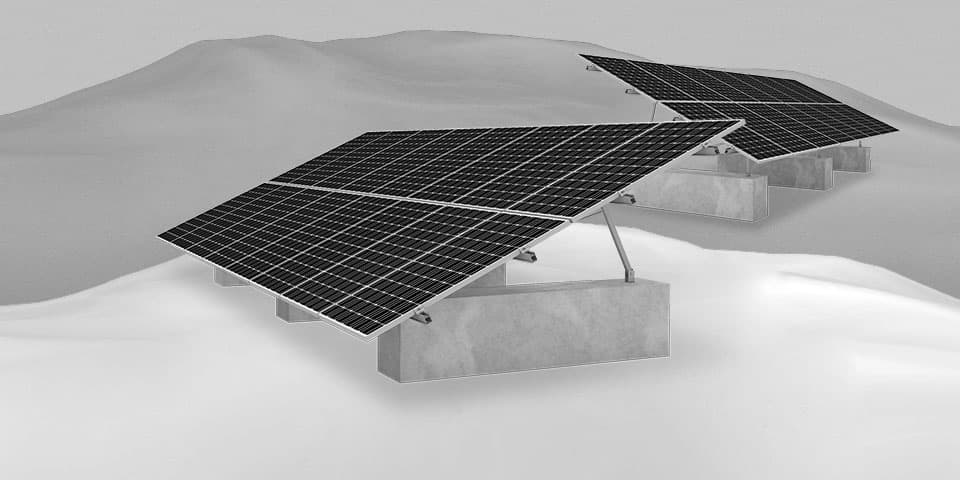

P-Rack System: Components for assembly of PV modules for small ground-mounted projects and off-grid systems.1.3 kN7m⊃;2

Simple concrete foundation.

• A simple solution for small ground-mounted projects and off-grid systems
• Detailed foundation and reinforcement plans
• Components pre-assembled: ready to assemble 15°, 20°, and 25°
• Delivery as palletized goods
  - Maximum rail length of 1.9 m
  - Suitable for pick up vehicle transport

GROUND REQUIREMENTS

The following soil properties were assumed:

  ϕ = 25° (slide friction angle)
  σR,d = 130kN/m⊃2; (soil pressure resistance)
  γ = 16kN/m⊃3; (unit weight earth-moist)
  ya = 6kN/m⊃3; (unit weight below groundwater table)

A sufficient capacity of the soil needs to be checked in the specific project by the constructor/owner of the site.
